A Technical Dissection of the Red Fort VBIED Incident’s Incomplete Detonation
The Vehicle-Borne Improvised Explosive Device (VBIED) that detonated near Delhi’s Red Fort metro station on November 10, 2025, presents a compelling case study in explosive failure mechanics. While the incident claimed 12 to 13 lives and incinerated multiple vehicles, forensic analysis reveals a profound technical anomaly: the device failed catastrophically in its primary function. What was intended as a devastating high-order detonation of 60–70 kilograms of ammonium nitrate fuel oil (ANFO) degraded into a low-order event—a deflagrative burn rather than a supersonic explosive reaction. This technical failure, manifesting most notably in the complete absence of a ground crater, transformed what could have been an unprecedented urban catastrophe into a localized, albeit deadly, thermal incident.
The physics underlying this failure—the delicate chemistry of explosive initiation, the thermodynamics of detonation wave propagation, and the forensic signatures left in their absence—offers critical insights into both the vulnerabilities of improvised explosive systems and the inadvertent protective effects of operational pressure on terrorist networks.
ANFO and Its Initiation Requirements
Ammonium nitrate (NH₄NO₃), the oxidizing agent at the core of ANFO explosives, occupies an unusual position in the explosive chemistry landscape. As a widely available agricultural fertilizer, it possesses extraordinary energy density—approximately 2.6 megajoules per kilogram—yet remains remarkably stable under normal conditions. This paradox of potency and stability has made ANFO the improvised explosive of choice worldwide, from the Oklahoma City bombing to the Oslo attacks.
However, this stability presents a fundamental technical challenge: ANFO cannot be reliably detonated through simple ignition or mechanical shock. Unlike sensitive primary explosives such as lead azide or mercury fulminate, ANFO requires a substantial initiation stimulus—a high-velocity detonation wave from a booster charge—to overcome its activation energy barrier and achieve the transition from deflagration to detonation.
The explosive mechanics are governed by the ZND (Zeldovich-von Neumann-Döring) detonation model, which describes how a shock wave compresses the explosive material to temperatures exceeding 3,000 Kelvin, initiating rapid exothermic decomposition. For ANFO, this shock must propagate at velocities between 3,000 and 4,500 meters per second to maintain a self-sustaining detonation wave. Below this critical threshold, the chemical reaction remains subsonic—a deflagration characterized by rapid burning rather than explosive shattering.
Security agencies estimated the Red Fort device contained 60–70 kilograms of ANFO. With a typical Relative Effectiveness Factor (REF) of 0.8 to 0.9 relative to TNT, successful high-order detonation would have yielded the energy equivalent of 56 to 63 kilograms of trinitrotoluene. The blast wave from such an event would have propagated through Delhi’s densely packed urban corridor with devastating efficiency, generating peak overpressures exceeding 3.5 psi at substantial standoff distances—sufficient to cause severe structural damage, pulmonary trauma, and mass casualties far beyond the immediate blast radius.
Booster Charge Hypothesis
The forensic investigation revealed a critical anomaly that explains the device’s failure. While ammonium nitrate residues were definitively identified at the scene, preliminary analysis indicated the presence of “a second type [of explosive] believed to be more potent” than the bulk ANFO charge. This secondary explosive represents the device’s intended booster charge—the high-velocity initiator essential for achieving full detonation of the less sensitive bulk explosive.
The identity of this booster material remains under forensic investigation, with samples collected from soil, vehicle wreckage, and explosive residues undergoing Gas Chromatography-Electron Capture Detector (GC/ECD) analysis to detect trace nitroaromatics and nitramines. The likely candidates include:
Research Department Explosive (RDX): A military-grade secondary explosive with a detonation velocity of 8,750 m/s, commonly used as a booster in sophisticated improvised devices. RDX’s sensitivity to initiation and high brisance make it ideal for shock-inducing applications.
Pentaerythritoltetranitrate (PETN): Another high-velocity explosive frequently employed in commercial detonators and boosters, with similar shock-generating capabilities.
Commercial Dynamite or Gelatin Explosives: Less sophisticated but more accessible alternatives that could theoretically serve the booster function, though with reduced reliability.
The critical question becomes: why did this booster fail to achieve its designed function?
When Chemistry Fails
A low-order detonation represents a hybrid failure mode in explosive systems—the device initiated sufficiently to begin rapid decomposition but failed to establish a stable, supersonic detonation wave. Instead of the explosive’s chemical energy releasing in a coherent shock front lasting microseconds, the reaction progressed as a subsonic deflagration occurring over milliseconds to seconds.
The thermodynamic consequences of this failure are profound. In a high-order event, the Chapman-Jouguet condition describes the equilibrium state where the detonation wave velocity matches the local sound speed in the shocked explosive, creating a stable reaction zone that propagates through the entire charge mass nearly instantaneously. The explosive products—primarily gaseous nitrogen, water vapor, and carbon oxides—expand at temperatures exceeding 3,000°C and pressures reaching several gigapascals, driving the characteristic blast wave that causes structural damage and casualties.
In the Red Fort incident, this ideal scenario collapsed. Several technical factors could have precipitated this failure:
Insufficient Booster Energy: If the booster charge was undersized, improperly positioned, or of inadequate quality, the shock wave generated may have been insufficient to overcome ANFO’s critical diameter and density requirements. ANFO requires a minimum charge diameter (typically 50–100 mm depending on composition and confinement) and sufficient confinement pressure to sustain detonation. An inadequate booster would initiate local decomposition without establishing the necessary pressure regime for wave propagation.
Improper Charge Configuration: The geometry of explosive packing profoundly influences detonation efficiency. Air gaps, inconsistent density, or contamination with incompatible materials can create impedance mismatches that reflect or attenuate the detonation wave. Given the operational circumstances—the bomber’s panic following the arrest of accomplices—assembly errors become highly probable.
Premature Initiation: The forensic finding that the explosion was “premature and not fully developed” suggests the device may have been triggered before the booster was properly positioned or activated. This could result in ignition of the ANFO rather than shock initiation, producing rapid burning instead of detonation.
Environmental Factors: ANFO’s sensitivity to moisture is well-documented. Water absorption reduces the explosive’s reactivity by interfering with the fuel-oxidizer interface. While less likely given Delhi’s relatively dry November climate, this cannot be entirely excluded.
The consequence of this failure was a dramatic reduction in explosive efficiency. Where a high-order event would have converted chemical potential energy into mechanical work with 30–40% efficiency, the low-order deflagration likely achieved less than 10% conversion efficiency. The majority of the energy dissipated as thermal radiation and combustion products rather than as the coherent pressure wave that characterizes true explosive behavior.
Reading the Forensic Signature
Perhaps the most definitive evidence of explosive failure is the complete absence of a ground crater at the detonation site. Crater formation represents the most unambiguous signature of high-order detonation efficiency, as it directly measures the explosive energy coupled into the ground through the blast wave’s interaction with the substrate.
The physics of crater formation involves complex shock wave dynamics described by the Hopkinson-Cranz scaling law, which relates crater dimensions to explosive yield and standoff height. For a surface or near-surface detonation, the blast wave couples strongly with the ground, generating a spherical shock that propagates through the soil matrix. The pressure pulse exceeds the material’s crushing strength, excavating a hemispherical cavity whose radius scales approximately with the cube root of the explosive mass.
For a properly functioning 60-kilogram TNT-equivalent charge detonated at or near ground level, crater formation is inevitable. Empirical data from controlled demolition studies and military testing suggest such a charge would create a crater approximately 1.5 to 2.0 meters in diameter and 0.5 to 0.8 meters deep in typical urban soil conditions (sandy loam with moderate compaction). The crater profile—steep-walled with radial fracturing and ejecta distribution—would be unmistakable.

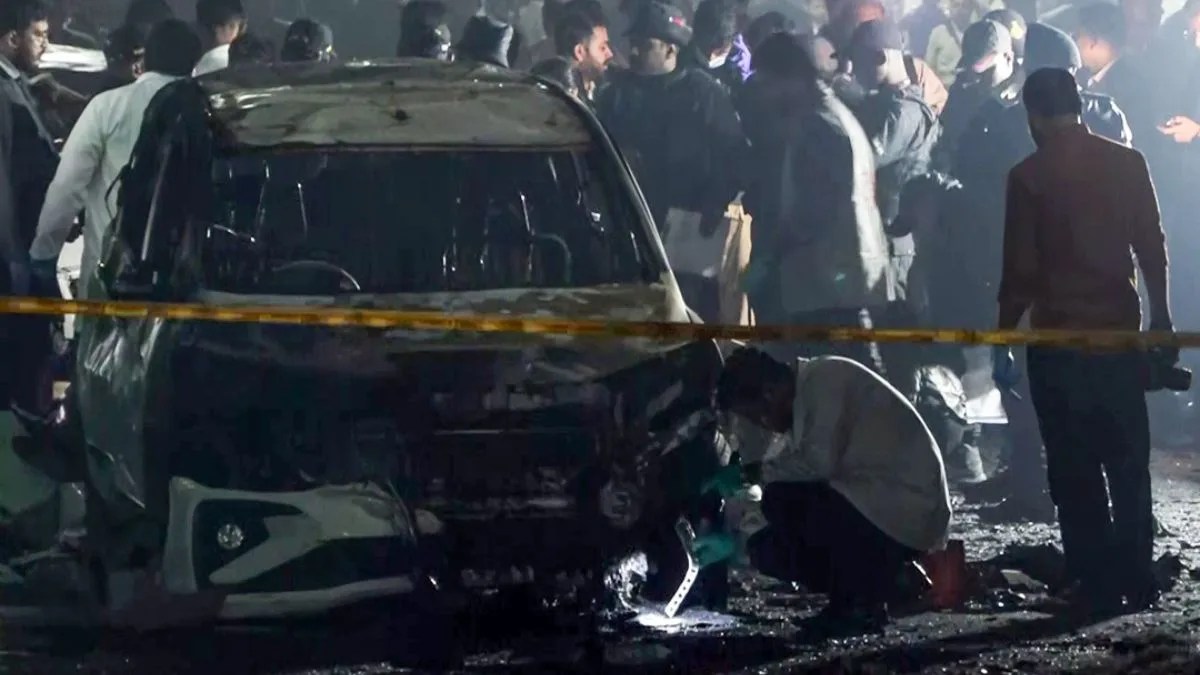

The Red Fort scene yielded nothing of this signature. Forensic teams documented the blast site immediately after fire suppression, finding only surface scorching, thermal damage to asphalt, and vehicle debris—but no excavation, no displaced soil volume, and no radial fracture patterns. This absence is not simply a matter of degree but of kind: it indicates the blast wave never achieved the momentum and pressure required for significant ground coupling.
This forensic finding allows for a quantitative assessment of the device’s effective yield. Crater formation in typical urban substrates requires minimum peak overpressures of approximately 15–20 psi at the ground interface, sustained for sufficient impulse duration to overcome soil inertia. The absence of cratering constrains the effective yield to significantly below 20 kilograms TNT equivalent—representing less than one-third of the device’s intended destructive potential.
Yield Disparity
The disparity between intended and achieved yield provides a stark metric of the device’s technical failure. This analysis requires integrating multiple forensic parameters: the estimated charge mass, observed damage patterns, overpressure effects, and thermal signatures.
Intended Yield Calculation:
- Charge mass: 60–70 kg ANFO
- ANFO REF factor: 0.8–0.9 relative to TNT
- Theoretical TNT equivalent: 48–63 kg
- Expected blast radius (3.5 psi overpressure, sufficient for severe structural damage): approximately 40–50 meters
- Expected crater: 1.5–2.0 m diameter, 0.5–0.8 m depth
Observed Effects:
- Window shattering at several hundred meters (indicative of 1.0 psi minimum overpressure)
- Complete incineration of 6 cars, 2 e-rickshaws, 1 auto-rickshaw
- No structural collapse beyond immediate blast zone
- No ground crater formation
- Damage pattern consistent with intense thermal event rather than pressure wave
Inferred Actual Yield: The damage profile suggests an effective TNT equivalent below 20 kg, with the explosive energy dominated by thermal radiation and combustion rather than blast wave propagation. The high-order detonation efficiency was likely below 30% of the intended yield, with the remainder of the explosive material either unconsumed or burning in subsonic combustion mode.
This represents a 70% reduction in explosive efficiency—a failure rate that, while deadly, prevented a catastrophe of far greater magnitude. Had the device functioned as designed, the blast wave would have propagated through the congested traffic intersection with lethal efficiency, generating multiple casualty mechanisms: primary blast injury from overpressure (pulmonary barotrauma, tympanic membrane rupture), secondary injury from high-velocity fragmentation, tertiary injury from body displacement, and quaternary injury from thermal effects and structural collapse.
When Fire Replaces Fragmentation
The low-order nature of the detonation fundamentally altered the weapon’s lethality profile. Rather than the rapid pressure pulse characteristic of high explosives, the Red Fort device generated a sustained thermal event dominated by the combustion of incompletely detonated ANFO and the vehicle’s fuel tank.
The seven fire tenders required to suppress the conflagration, and the 37-minute duration from explosion (6:52 PM) to fire control (7:29 PM), underscore the thermal intensity of the event. This sustained combustion represents a different physics regime than explosive blast. Where detonation generates microsecond pressure pulses, deflagration produces thermal radiation and convective heating over seconds to minutes, creating a localized inferno rather than a distributed shockwave.
The complete incineration of multiple vehicles represents this thermal weaponization. Vehicle fires typically reach peak temperatures of 600–800°C in passenger compartments, sufficient to ignite adjacent vehicles through radiant heat transfer and ignite secondary combustibles. The ANFO deflagration, burning at temperatures exceeding 2,000°C, would have accelerated this cascade, creating a thermal kill zone that compensated, albeit inefficiently, for the absent blast wave.
The casualty profile reflects this thermal dominance. Dr. Umar Nabi, the bomber, was completely incinerated—”none of his body parts could be retrieved whole,” necessitating DNA identification protocols. This extreme thermal exposure indicates proximity to sustained, intense combustion rather than the brief thermal flash of a high-order detonation. The 12–13 fatalities and 20+ injuries likely resulted primarily from thermal burns and toxic gas inhalation rather than the blast overpressure and fragmentation injuries characteristic of properly functioning VBIEDs.
Operational Context
The technical failure of the device cannot be divorced from its operational context. The bomber, Dr. Umar Nabi, was linked to a Faridabad-based terror module that had been subjected to police raids shortly before the attack, resulting in the arrest of accomplices and the seizure of 360 kilograms of ammonium nitrate—clearly the source material for the vehicle device.
This external pressure created a cascading series of operational compromises. The planned, methodical assembly of the device—requiring careful integration of the booster charge, proper packing of the bulk explosive, and reliable initiation circuitry—was almost certainly rushed or abbreviated. The forensic finding that the explosion was “premature and not fully developed” suggests either:
- Panic-induced triggering: The bomber may have initiated the device earlier than intended, before proper positioning or assembly was complete.
- Assembly errors: The booster charge may have been improperly positioned, undersized, or omitted entirely in the rush to execute the attack.
- Premature detonation during transport: Vibration, static electricity, or accidental electrical contact could have initiated the device while in transit, before reaching the intended target.
This represents a counterterrorism success through disruption rather than prevention. While the attack was not intercepted before execution, the pressure applied to the operational network degraded the technical sophistication of the device to the point of substantial failure. The 70% reduction in yield, while still tragically lethal, prevented the mass casualty event that would have resulted from successful high-order detonation in Delhi’s densely populated commercial corridor.
Forensic Detection
The chemical analysis of explosive residues provides the definitive reconstruction of the device’s composition and failure mode. The forensic process involves multiple analytical techniques, each targeting specific molecular signatures:
Gas Chromatography-Electron Capture Detector (GC/ECD): This highly sensitive technique detects nitrogen-containing organic compounds characteristic of explosives. In the Red Fort samples, GC/ECD analysis would identify:
- Unreacted ammonium nitrate from the bulk charge
- Trace nitramines (if RDX was used as the booster)
- Dinitrotoluene and trinitrotoluene derivatives (if commercial dynamite was employed)
- Combustion products from the deflagration process
Gas Chromatography-Vacuum UV Spectroscopy (GC-VUV): This advanced technique provides confirmatory identification through molecular absorption spectra, distinguishing between similar compounds that might confound GC/ECD analysis alone.
Isotopic Analysis: The concurrent seizure of 360 kg of ammonium nitrate from the Faridabad cell creates an opportunity for source matching. Nitrogen and oxygen isotope ratios in commercial fertilizers vary by manufacturing process and geographic origin, potentially linking the explosive residues to the seized materials through isotopic fingerprinting.
The forensic challenge lies in the thermal destruction of evidence. The sustained combustion that characterized the low-order event consumed much of the organic explosive residue, leaving only trace quantities for analysis. The recovery of “more than 40 samples” from soil, vehicle wreckage, and surface residues reflects the systematic approach required to capture sufficient material for definitive chemical identification.
The critical forensic question centers on the “more potent” secondary explosive detected in preliminary analysis. If this material is confirmed as military-grade RDX or PETN, it would indicate sophisticated procurement channels and technical expertise within the terror network—despite the ultimate failure of device assembly. Conversely, if the booster proves to be commercial dynamite or improvised plastic explosive, it would suggest limitations in the cell’s access to military materials and reliance on more accessible, if less reliable, alternatives.
Blast Wave Physics
To fully appreciate the device’s failure, we must consider the blast physics that should have occurred. A properly functioning 60-kg TNT-equivalent charge detonates in less than 200 microseconds, generating a spherical shock wave that propagates outward at supersonic velocity. The blast wave profile follows the Friedlander equation, characterized by an instantaneous pressure rise to peak overpressure, followed by exponential decay and a negative phase as the pressure drops below ambient.
At 10 meters standoff (the approximate distance to adjacent vehicles):
- Peak overpressure: 15–20 psi
- Impulse duration: 10–15 milliseconds
- Dynamic pressure: sufficient to displace vehicles and collapse unreinforced walls
- Fragmentation velocity: steel fragments exceed 2,000 m/s
At 50 meters standoff (nearby buildings):
- Peak overpressure: 3–4 psi
- Sufficient for window breakage, structural damage to facades
- Serious injury to unprotected personnel
- Secondary fragmentation from glass and building materials
At 100 meters standoff:
- Peak overpressure: 1.0–1.5 psi
- Window breakage, minor structural damage
- Eardrum rupture in unprotected individuals
The Red Fort incident achieved only the outermost damage ring—window breakage at several hundred meters—indicating peak overpressures barely exceeding 1.0 psi. The absence of substantial structural damage, the localized nature of casualties, and particularly the absence of high-velocity fragmentation injuries all point to a blast wave that never achieved the intensity or coherence of true explosive detonation.
The vehicle itself, normally a source of deadly secondary fragmentation in VBIED attacks, appears to have failed in this function as well. The Hyundai i20’s metal structure should have been shredded into thousands of high-velocity fragments by a high-order blast, creating a radial pattern of shrapnel wounds and embedding metal fragments in surrounding structures. Instead, the vehicle appears to have burned and mechanically failed under thermal stress rather than explosively fragmenting—consistent with deflagrative rather than detonative loading.
Lessons in Explosive Failure
The Red Fort incident illuminates the fundamental technical challenges facing improvised explosive device construction. While the chemistry of ANFO is well-established and the materials are readily available, the reliable engineering of large-scale VBIED systems requires expertise, time, and proper materials that operational pressure can deny.
The device’s failure chain likely began with the booster charge—either its absence, improper sizing, or incorrect positioning. This single point of failure prevented the transition from deflagration to detonation, collapsing the entire energy cascade that characterizes high-order explosive events. The subsequent thermal event, while deadly, represented a weapon operating at perhaps 20–30% of its designed lethality.
This technical fragility represents a strategic vulnerability in terrorist operational planning. Sophisticated VBIED attacks require:
- Secure assembly facilities: Time and space to properly configure the explosive train
- Technical expertise: Knowledge of explosive chemistry, charge geometry, and initiation systems
- Quality materials: Reliable booster charges, properly proportioned fuel-oxidizer ratios, and functional initiation circuits
- Testing capability: Ideally, small-scale testing to validate the explosive train before operational deployment
The disruption of any of these requirements—through surveillance, raids, arrests, or operational pressure—can degrade device reliability even if the attack proceeds. The Red Fort incident demonstrates that counterterrorism success need not always manifest as attack prevention; degrading the technical quality of executed attacks through network disruption represents an equally valuable, if less visible, form of protection.
The Crater That Tells a Story
The absent crater at the Red Fort blast site stands as the definitive forensic signature of explosive failure. Where there should have been a hemispheric excavation, radiating fractures, and displaced soil, investigators found only thermal damage and surface scorching. This negative evidence—the absence of what should have been—tells the story of a weapon that failed in its primary function.
The physics of this failure—insufficient shock initiation, incomplete detonation wave propagation, and the collapse into deflagrative combustion—transformed what was intended as a catastrophic urban bombing into a localized, though tragic, thermal incident. The 70% reduction in explosive efficiency, while still claiming lives, prevented the mass casualty event that successful detonation would have inflicted upon Delhi’s densely packed commercial corridor.
This technical analysis underscores a critical insight for counterterrorism strategy: explosive reliability is the terrorist’s vulnerability. By maintaining pressure on operational networks, disrupting logistics and safe houses, and forcing rushed execution timelines, security forces can induce technical failures even in attacks they cannot prevent entirely. The Red Fort incident stands as testament to this principle—a weapon that fired but failed, leaving death in its wake but not the devastation its builders intended.
The crater that wasn’t formed becomes the measure of the catastrophe that didn’t occur.
– Sudhakar Garlanka
